Owned Vessels & Equipment
Owned Equipment

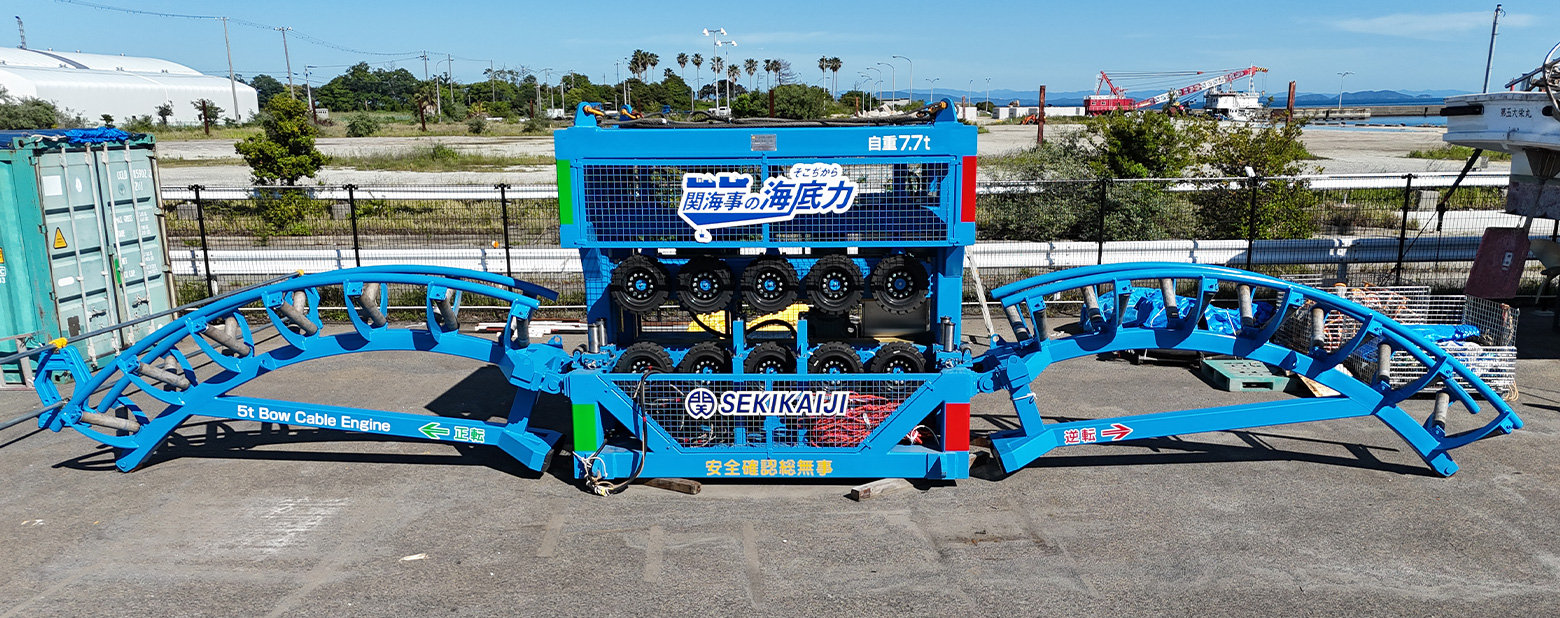

5t BCE 200model
BOW CABLE ENGINE
Bow cable loading device: Made in November 2023
The BCE is mainly used for handling submarine cables during loading operations (ship-to-shore, shore-to-ship, ship-to-ship, and shore relocation, etc.).

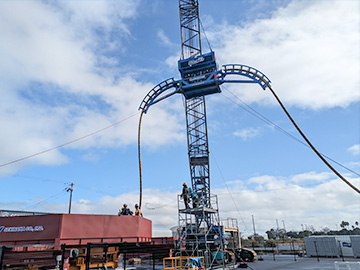

To operate it, the machine is lifted by a crane to the top of the coil/turntable, and the cable is moved by the machine's traction force.
Introduction of Bow cable engine
Outline
- Maximum traction
- 5.5t
- Holding force
- 5.5t
- Towing type
- wheeled
- Cable Tolerance
- φ30～200㎜
- Towing maximum speed
- 21.1m/min
- Traction motor
- 11kw＋11kw（AC）
- Arm bending radius/angle
- 3mR ≈70 degrees
- Crimping method
- hydraulic
