Owned Vessels & Equipment

Cable laying, burying, and transport barge services

Awaji

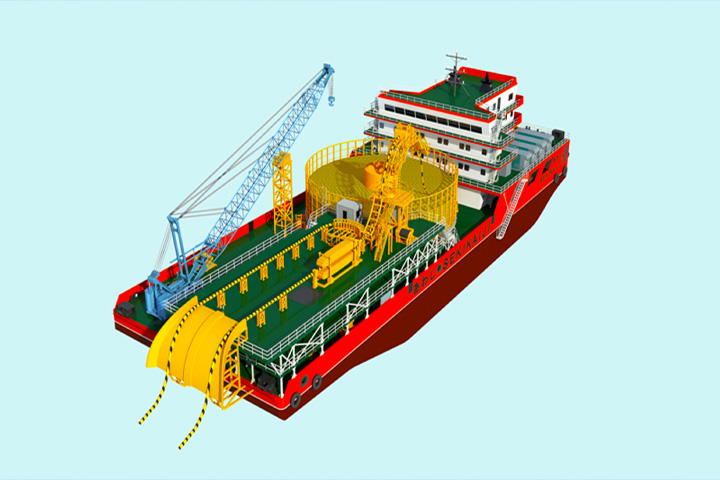

image of Awaji

Capable of precise vessel positioning control using the DPS system.

“Awaji” can maintain accurate vessel position control using the DPS system, even under certain conditions with external factors such as tidal currents, wind, and waves.
Capable of a wide variety of applications, including cable laying, oceanographic surveying, buoy installation at great depths, and fish reef installations, and also supports submarine cable laying for offshore wind power generation.

A dedicated barge for laying submarine cables and water pipes.
Equipped with the DPS for stationary positioning and a standard turntable, capable of maintaining position even in deep waters or areas where anchor deployment is challenging. “Awaji” can outfit specialized equipment for laying cables between wind turbines, with endorsed construction track records.
Additionally, it is capable of diverse site responses beyond submarine lines.
Capable of automatically laying cables along a preset route.
The Dynamic Positioning System (DPS) is a system that automatically controls the position and orientation of a laying/work barge against external forces (tidal currents, waves, and wind) by moving each thruster through a computer, allowing for automatic control. It is possible to lay cables automatically by inputting a preset route into the DPS.

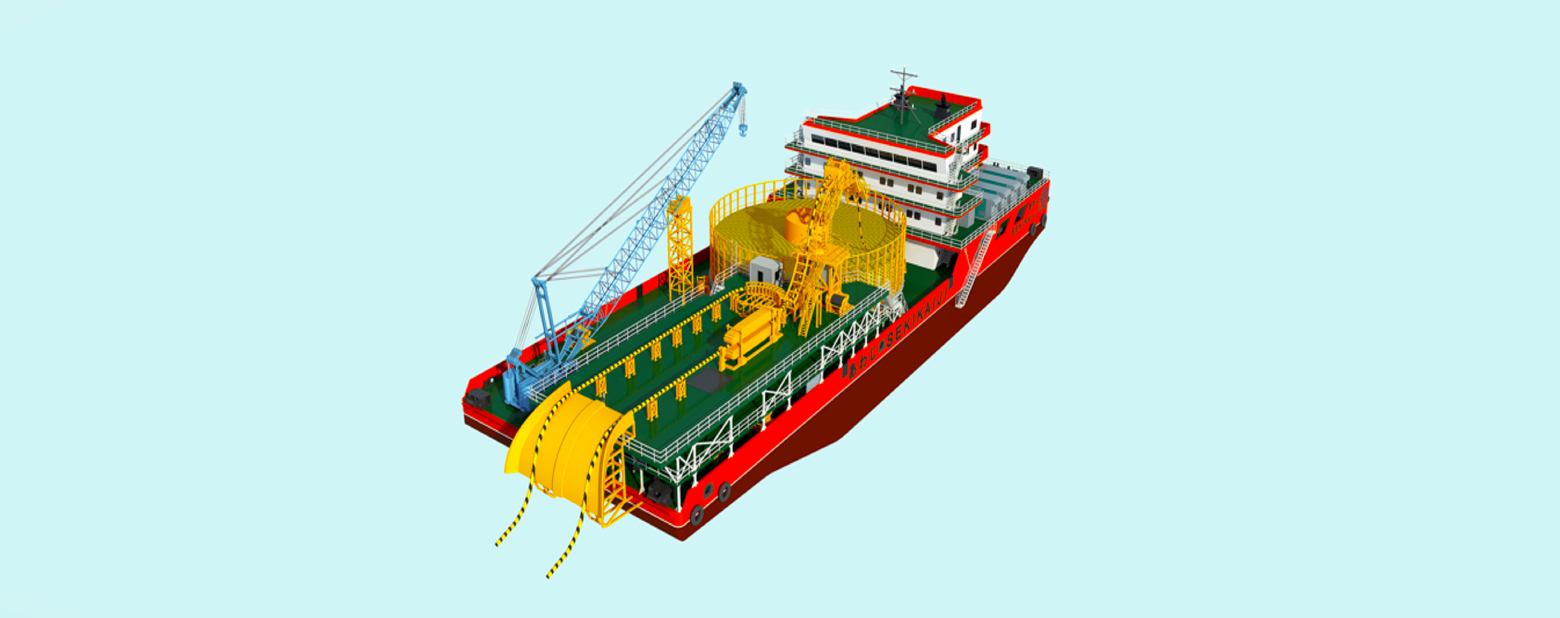

image of Awaji

Introduction of “Awaji”

  • image of KICS4500/5000
    KICS4500/5000
  • image of Thruster
    Thruster
  • image of Quadrant System
    Quadrant System
  • image of 1500-ton (800-ton) turntable
    1500-ton (800-ton) turntable
  • image of Traverser
    Traverser
  • image of 90-ton crawler crane
    90-ton crawler crane
  • image of Laying and burial management software EIVA
    Laying and burial management software EIVA
  • image of Accommodations
    Accommodations

Outline

Applications
Submarine cable and water pipe laying, burial, repairs, removal, and other marine-related work in general
Type of vessel
66M-type steel barge (non-self-propelled)
Class of vessel
NK (Provisions for crewless steel barges in Part Q Steel Barges applied)
Classification Code
NS
Nationality
Japan; Port of Registry: Awaji, Hyogo Prefecture
Sailing area
Coastal
Loading capacity
2000-ton loading
Material
Steel
Length
66.00 m
Width
26.00 m
Depth
3.70 m
Draft
3.60 m (2.00 m when swung up)

Main equipment

Complete set of fitting-out materials for laying and other purposes
Construction or mooring anchors ranging from 1 to 5 tons, configured according to the construction method and work content.
Turntable
1500-ton type (Outer diameter: 19,771 mm; Inner diameter: 7,229 mm)
DPS equipment
650 PS × 4 units; control device KAWASAKI KICS-5000 (4500)
Stern sheave
Radius: 4.00 m
Crawler crane
Manufactured by Kobelco Cranes Co., Ltd., Model 7090 (90-ton lift)
Navigation winch and burial, advancement winch
Various types, from 5 to 20 tons
Generators
220 KVA × two units, 125 KVA × three units, 99 KVA × one unit
Material storage
60 ㎡ × two stores
Communications equipment
Phone: 090-3026-1081; Fax: 03-6888-6124; International VHF
Accommodations
ten private rooms and 30 beds (capsule rooms), one female-only private room (with shower and toilet), and six shower rooms
Fuel tank
Diesel: 60 cubic meters; Heavy oil: 125 cubic meters
Water tank
660 cubic meters
