Owned Vessels & Equipment
Cable laying, burying, and transport barge services
Akari
Equipped with a turntable, enabling the transfer of cables to cable-laying ships.

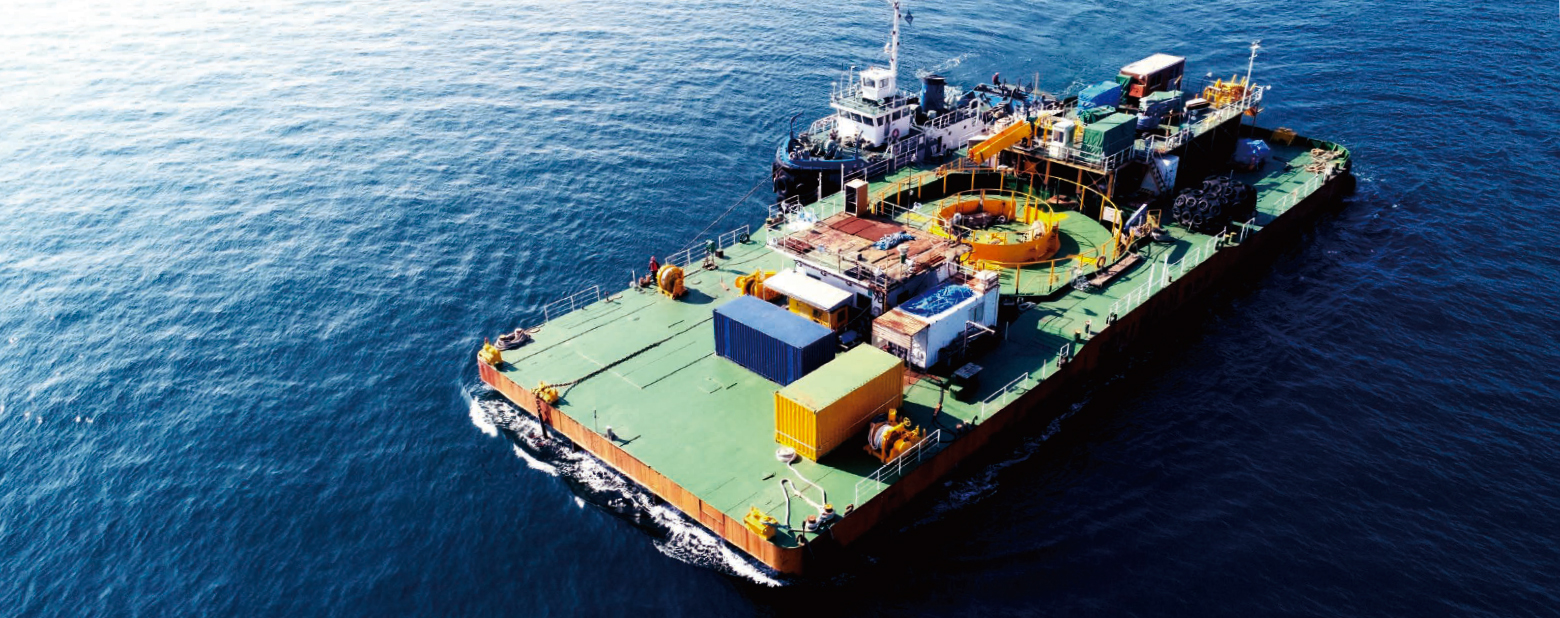

“Akari” is a barge equipped with a turntable.
“Akari” loads cables at the factory, sails to the port where the cable-laying ship is located, and transships the cables from “Akari” to the cable-laying ship on-site, enabling the cable-laying ship to perform continuous construction.
The total weight of the cables for a single project may exceed the capacity of the cable-laying ship. In that case, it eliminates the need for the cable-laying ship to sail back to the factory, allowing for the supply of cables from the factory directly to the laying area.
- Cable and water pipe transfer barge
-
Equipped with a 700-ton turntable
*Not equipped with the DPS - What is “Transship”?
-
The process of transferring cables from “Akari” to another cable-laying ship.
It involves the transfer of cables from the turntable on “Akari” through a tensioner and then onto another cable-laying ship, where it is wound onto the turntable through its tensioner.
During the transfer, “Akari” can also load other equipment besides cables, allowing for the supply of specialized equipment to the cable-laying ship tailored to the cables.

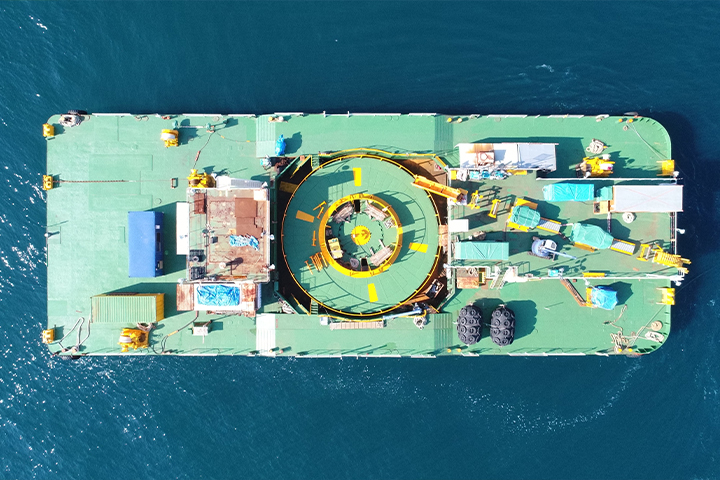

Introduction of “Akari”
-
700-ton turntable -
Pass line -
Chute -
Deck free space -
Restroom -
Mooring facilities -
Tool container -
Service generator
Outline
- Applications
- Submarine cable transshipment, laying, burial, repairs, removal, and other marine-related work in general
- Material
- Steel
- Length
- 60.00 m
- Width
- 23.00 m
- Depth
- 2.70 m
- Loading capacity
- 2,000 tons
Main equipment
- Outfitting materials set/Other for laying
- Passline stage/Construction or mooring anchor weighing one to five tons/Outfitting reconfiguration depending on construction methods and work content
- Maneuvering winches
- Five to ten tons, various types
- 700-ton type turntable
- One unit
- Material storage warehouse
- 60 ㎡ × 2 rooms
- Diesel oil tank
- 20 kL
- Heavy oil tank
- 30 kL
- Freshwater tank
- 90 kL
